How to Route DIDs from Telnyx to your PrimoDialler

How to route DIDs towards your Dialler from Telnyx

This guide will show you how to route DIDs towards your dialler. You will need to sign in your telnyx account and if you do not have account on telnyx please sign up.

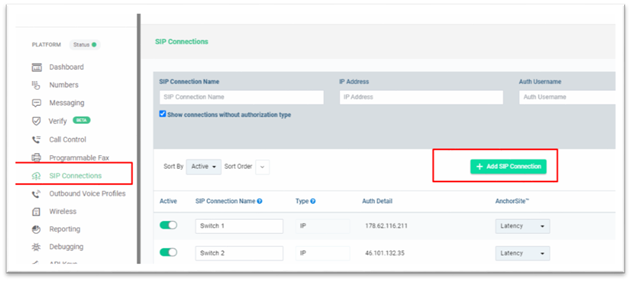

1.Once you are signed in, create a SIP connection:

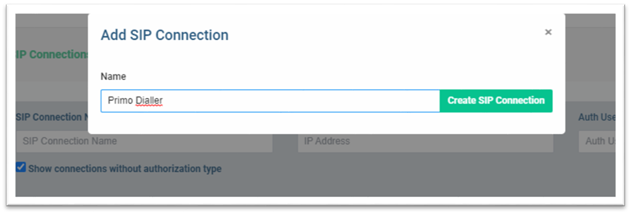

2.You need to name your SIP Connection.

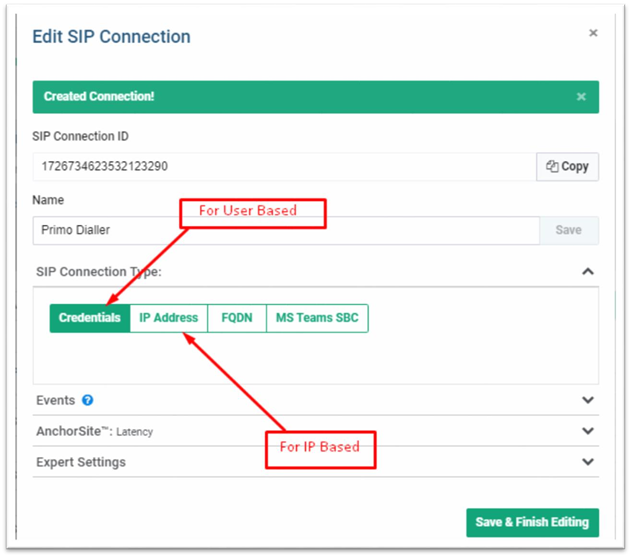

3.Here you need to select whether you are routing DID towards a User Based account or You need to route DID towards Dialler IP.

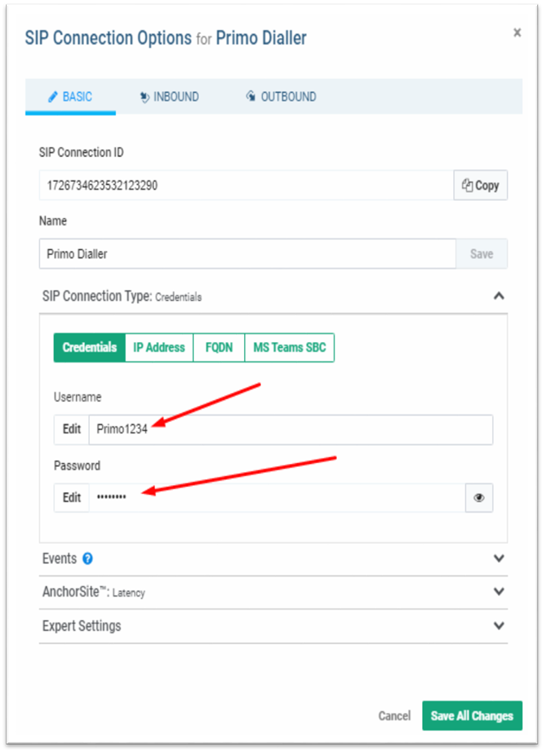

4.For User Based Account – Enter your SIP connection Name and password and Save All changes

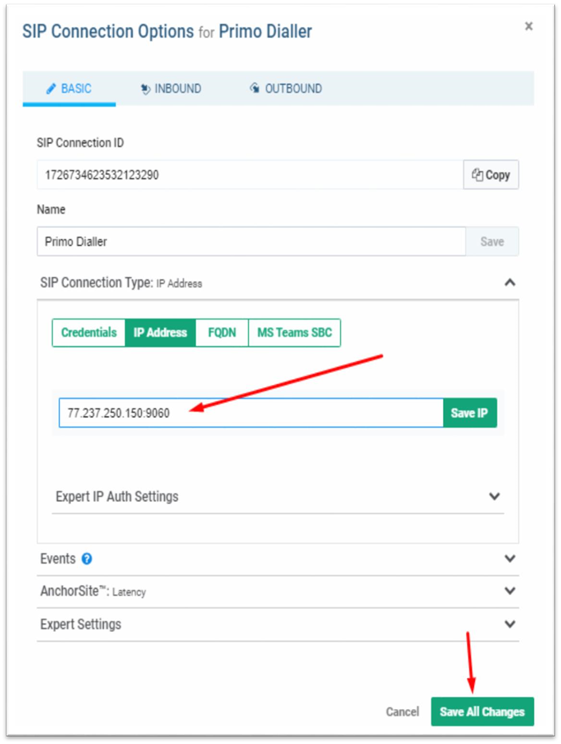

5.Select IP for IP Based Account and enter your dialer IP. If you are using Primo Dialler enter IP with port :9060 e.g. 77.237.250.150:9060 and if you are using your own dialer enter IP with default Port :5060 e.g. 40.125.35.12:5060 and save all changes.

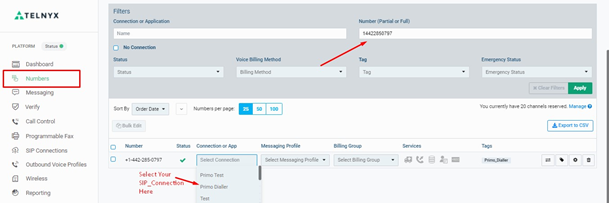

6.Last step is to route DID towards your newly created SIP Connection.
